TMB-04

ManufacturerTranstech
RegionNot Applicable
Platform Industrial/SBC
Original
Boxed
Instructions
Edit System Details

The Transtech TMB-04 is an ISA expansion card that fits into an IBM PC for hosting INMOS Transputer hardware.

The board has 16x 30pin SIMM sockets and a single, onboard INMOS Transputer, it also has 4 sockets for connecting Transputer TRAM modules as well as an external 32-way connector for networking with other Transputer boards or networks.

The onboard Transputer network is NOT programmable, as the board does not have a C004 programmable link controller. The network is controlled by the external edge connector wiring ONLY.

- 16MB RAM via 16x 30pin 1MB SIMM modules
- Onboard IMST-805 G25S 25MHz 32bit Transputer with FPU

Images


Image Original Size (bytes) Image Dimensions (pixels) Description

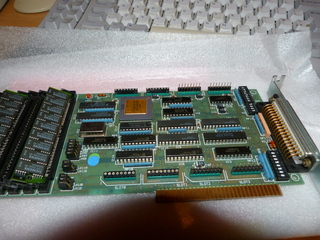

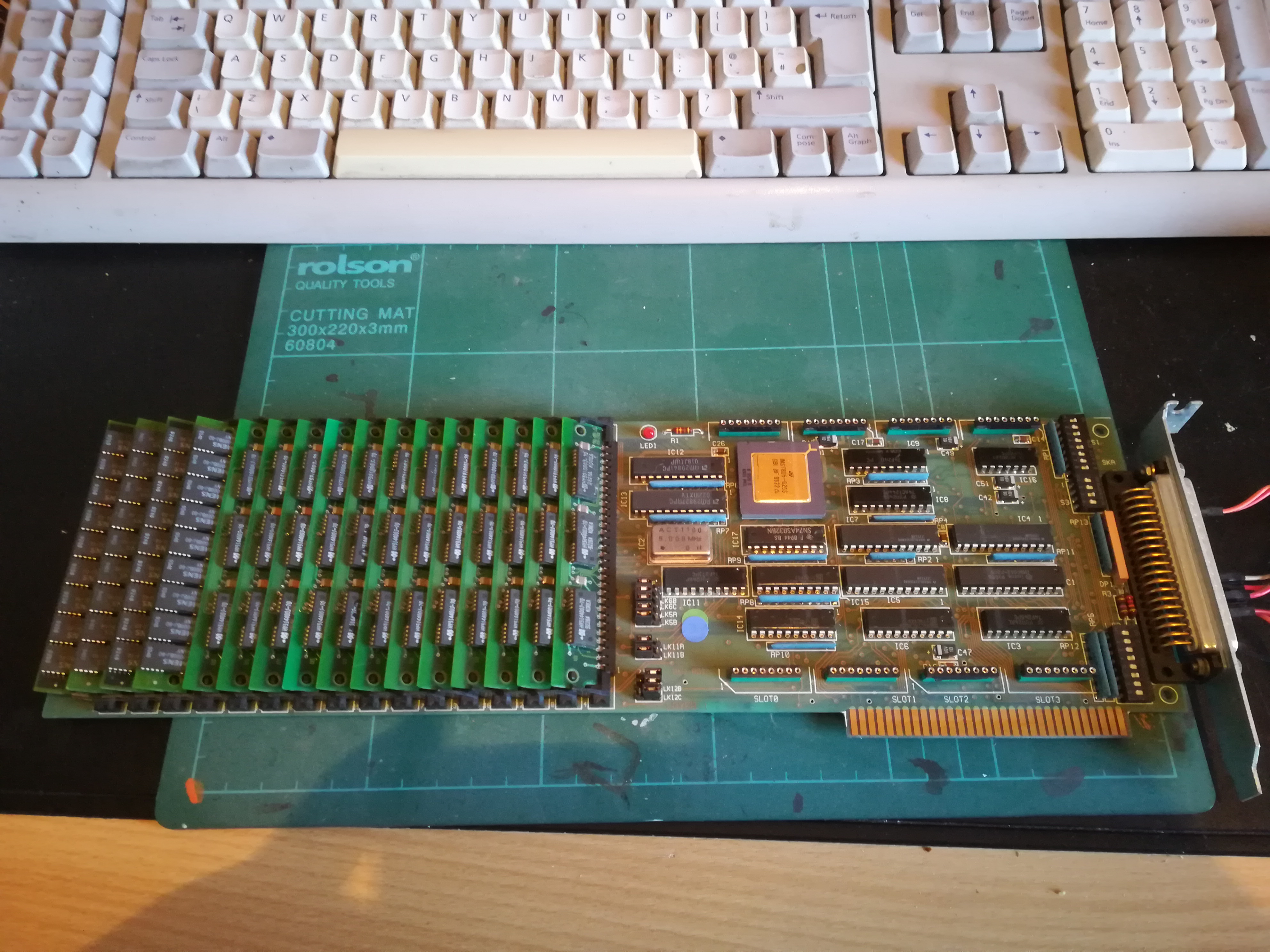

5701632 4320 x 3240 TMB04 Transputer interface showing the 4 vacant TRAM module connectors and partially filled SIMM sockets. A T800-series 32bit transputer is also visible (gold topped CPU).

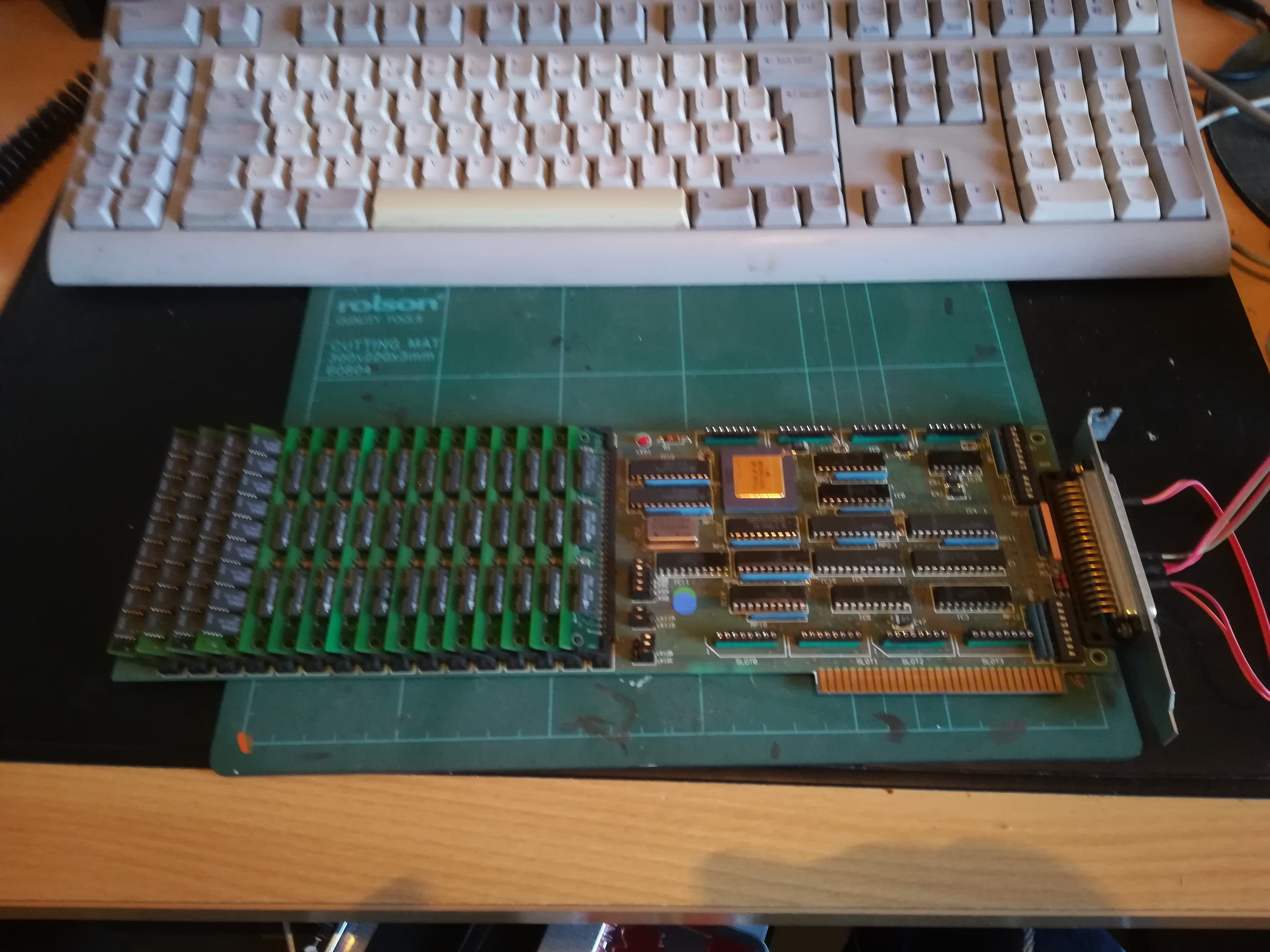

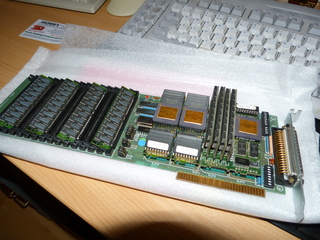

6046208 4320 x 3240 TMB04 Transputer interface complete with 2x size-1 TRAM modules and 1x size-2 module fitted.

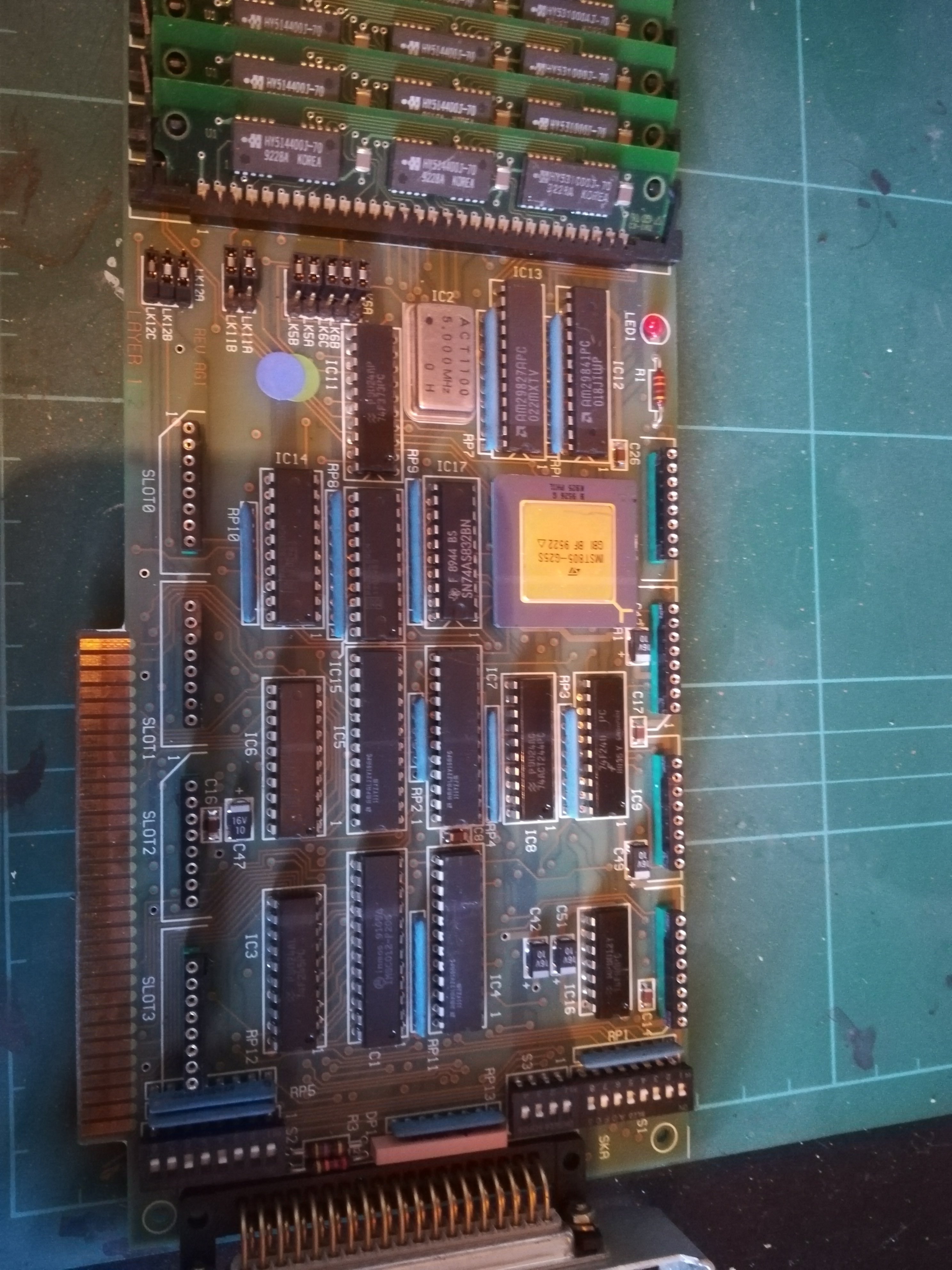

2375592 3968 x 2976 No Description

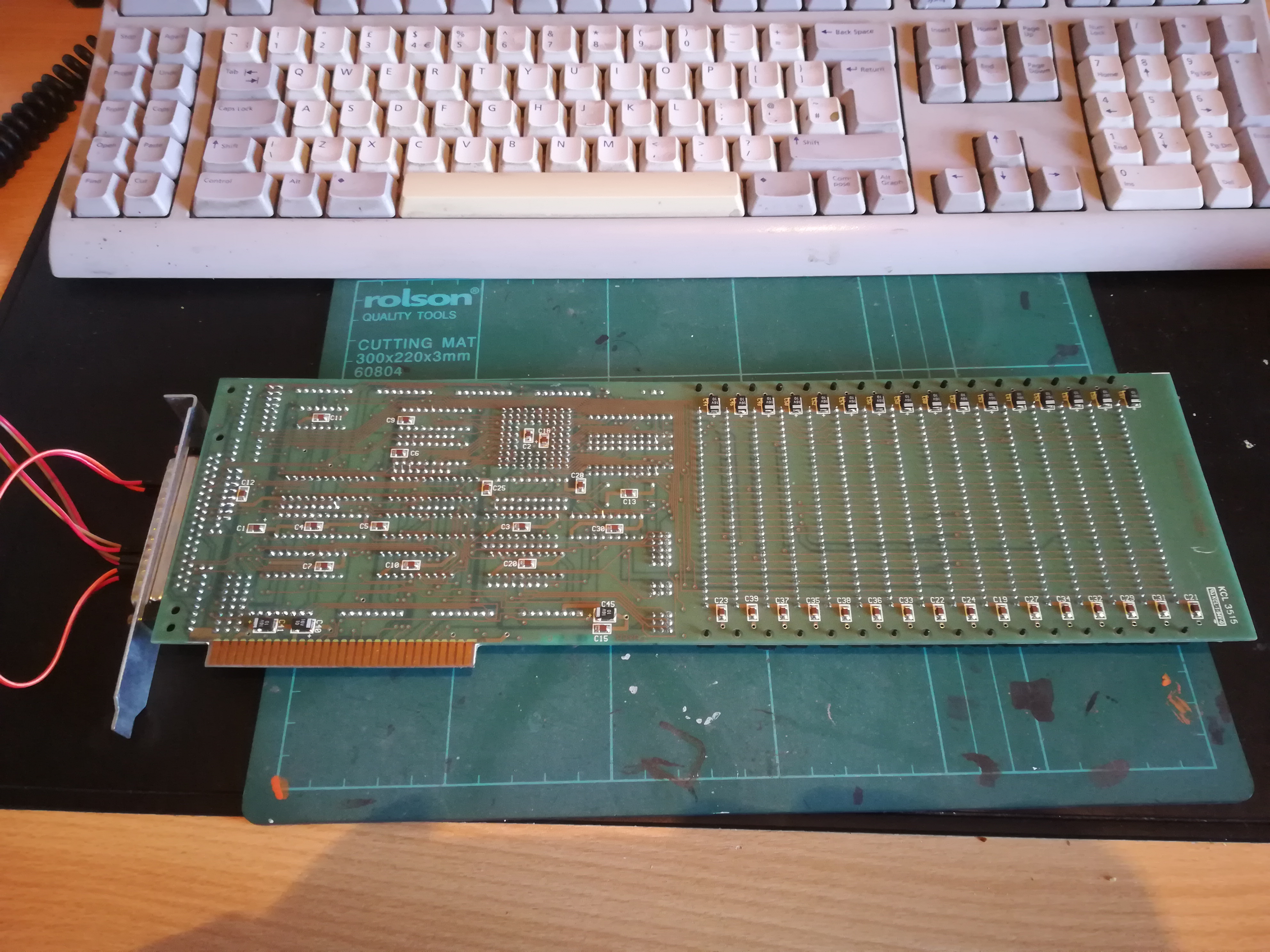

2828293 3968 x 2976 No Description

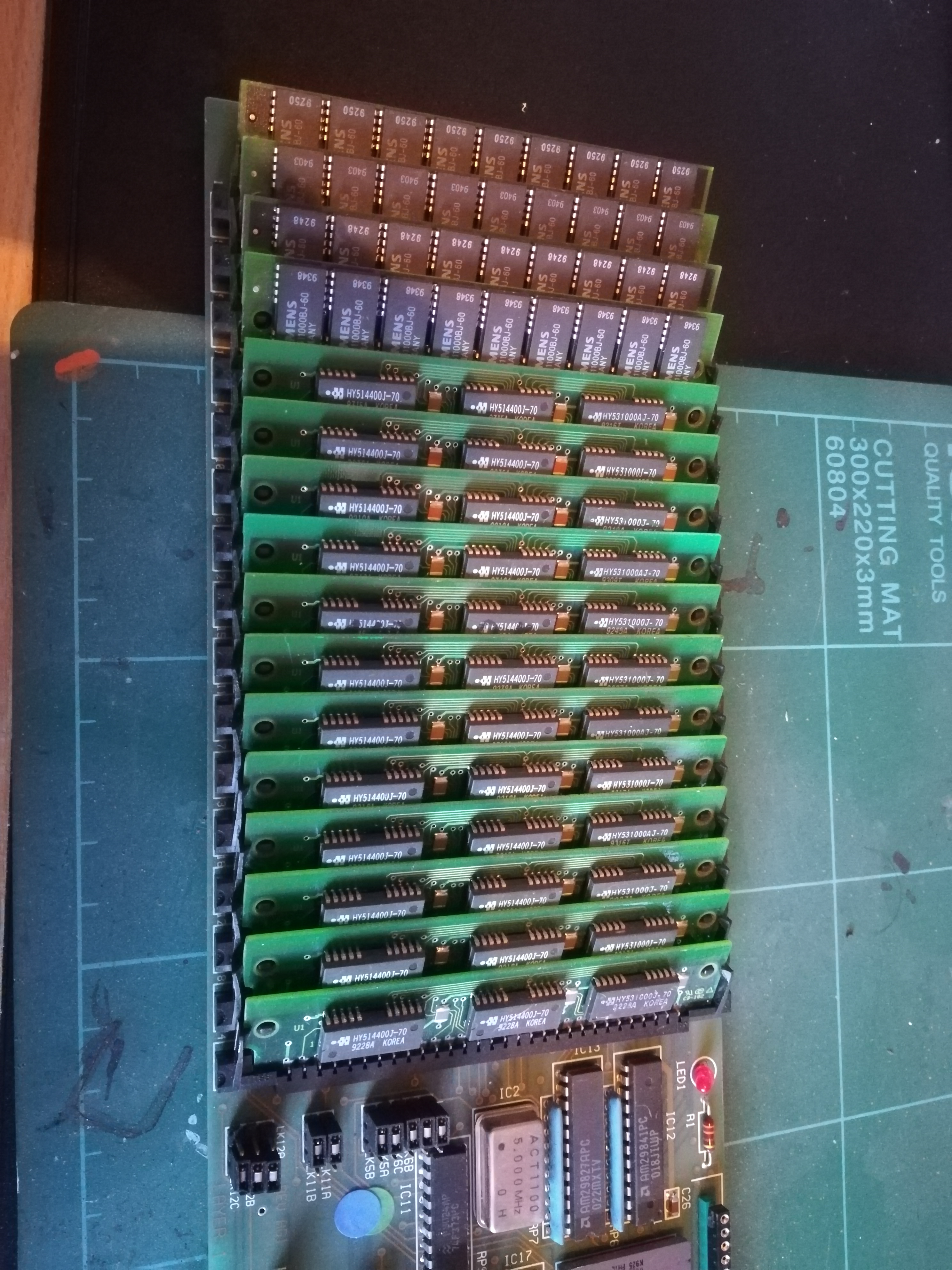

2654500 2976 x 3968 No Description
2757304 2976 x 3968 No Description
2833757 3968 x 2976 No Description
