VME board with the following:
110MHz MicroSparc II CPU
16MB + 64MB RAM
10MB Fast SCSI-2
10Mb Ethernet AUI
Keyboard port
Serial
2x SBUS slots
The board came with an SBUS extender allowing the fitment of two SBUS cards, in this case they are:
Sun HME 100Mb Fast Ethernet / 20MB Fast-Wide SCSI-2 card
Sun TurboXGX (TGX / cgsix) framebuffer
Images

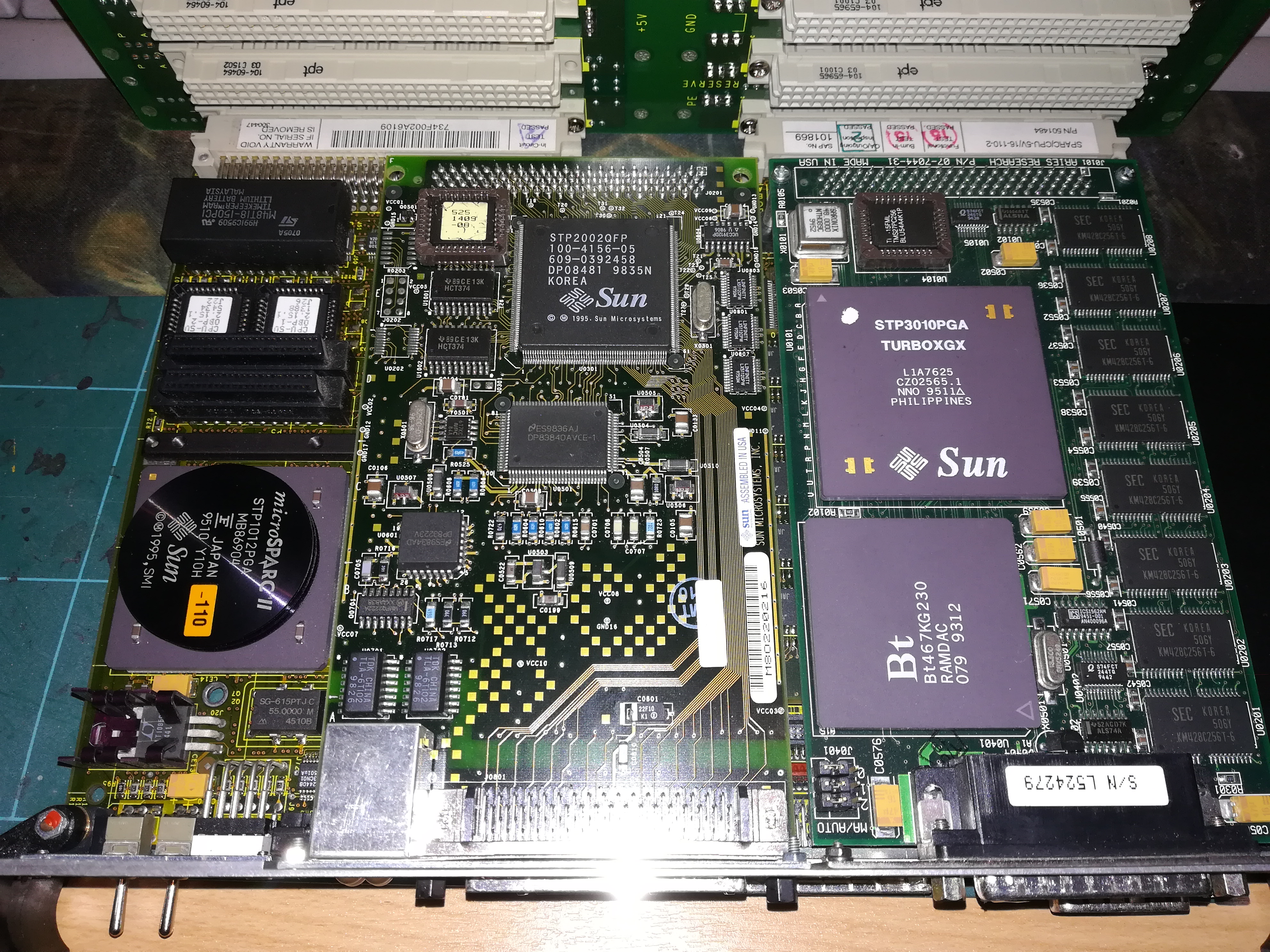

Filename: None / GameDataCategory object (5) / VGDB-images/industrial/IMG_20181125_165625.jpg
Description: Sparc 5V CPU board showing the two SBUS slots in use - one combo ethernet/SCSI card and one colour framebuffer card.

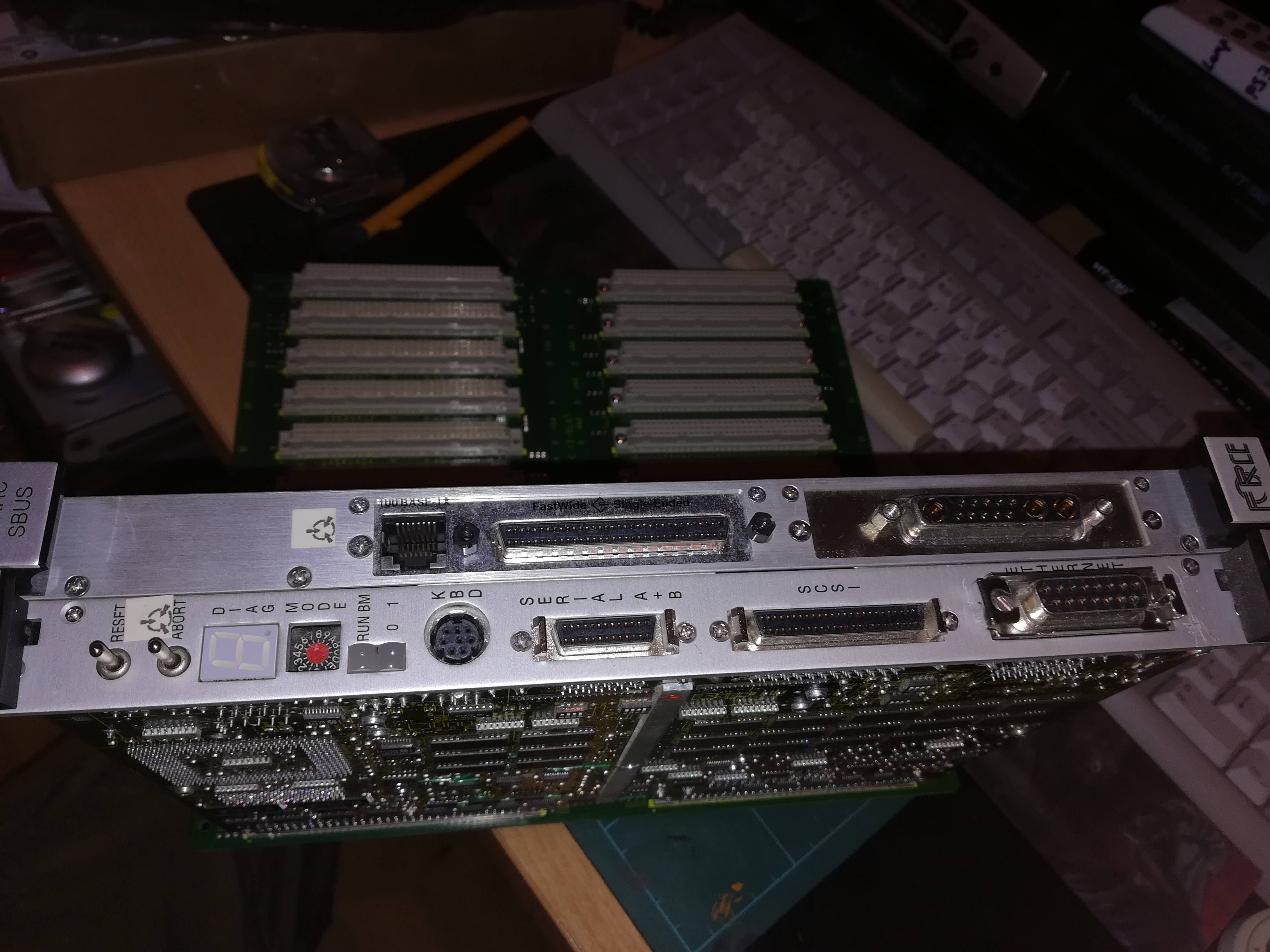

Filename: None / GameDataCategory object (5) / VGDB-images/industrial/IMG_20181125_165537.jpg
Description: Photo showing extra width SBUS extender panel.

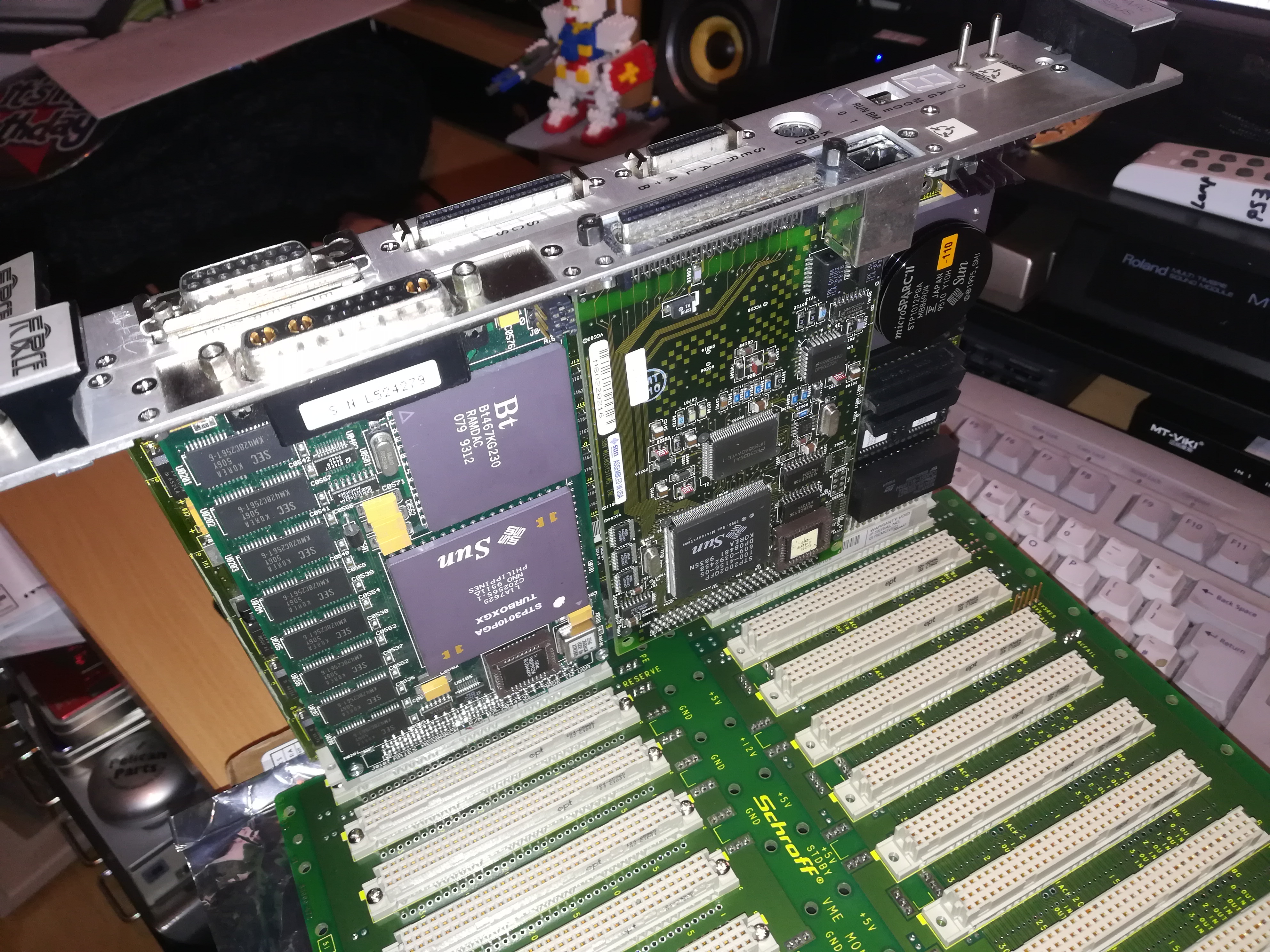

Filename: None / GameDataCategory object (5) / VGDB-images/industrial/IMG_20181123_122027.jpg
Description: VME board shown plugged in to 12 slot monolithic backplane.

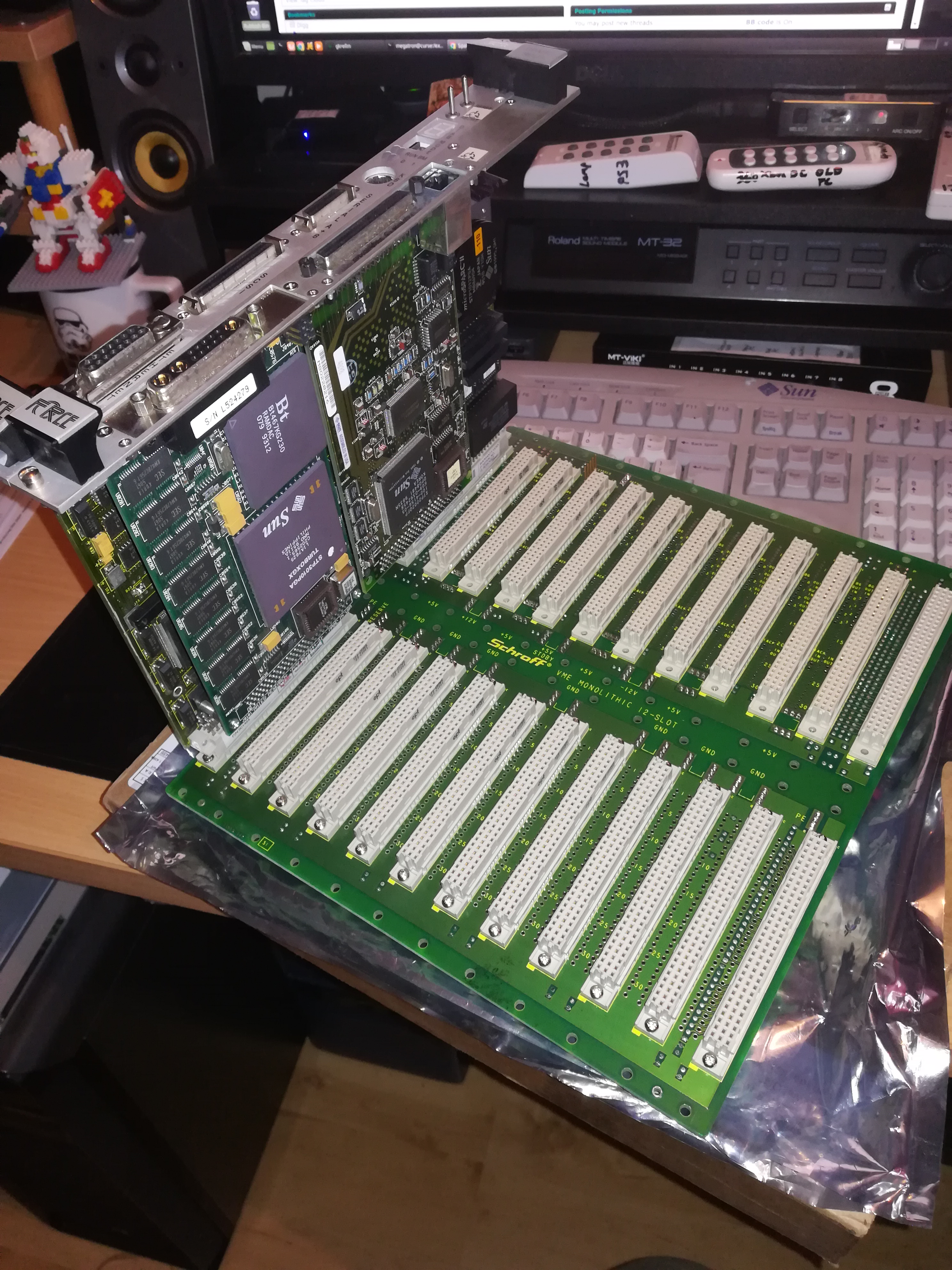

Filename: None / GameDataCategory object (5) / VGDB-images/industrial/IMG_20181123_122011.jpg
Description: No Text
‹
›
Image |
Original Size (bytes) |
Image Dimensions (pixels) |
Description |
|
4643084 |
3968 x 2976 |
Sparc 5V CPU board showing the two SBUS slots in use - one combo ethernet/SCSI card and one colour framebuffer card.
|
|
2627549 |
3968 x 2976 |
Photo showing extra width SBUS extender panel.
|
|
3531065 |
3968 x 2976 |
VME board shown plugged in to 12 slot monolithic backplane.
|
|
3280030 |
2976 x 3968 |
No Description
|
