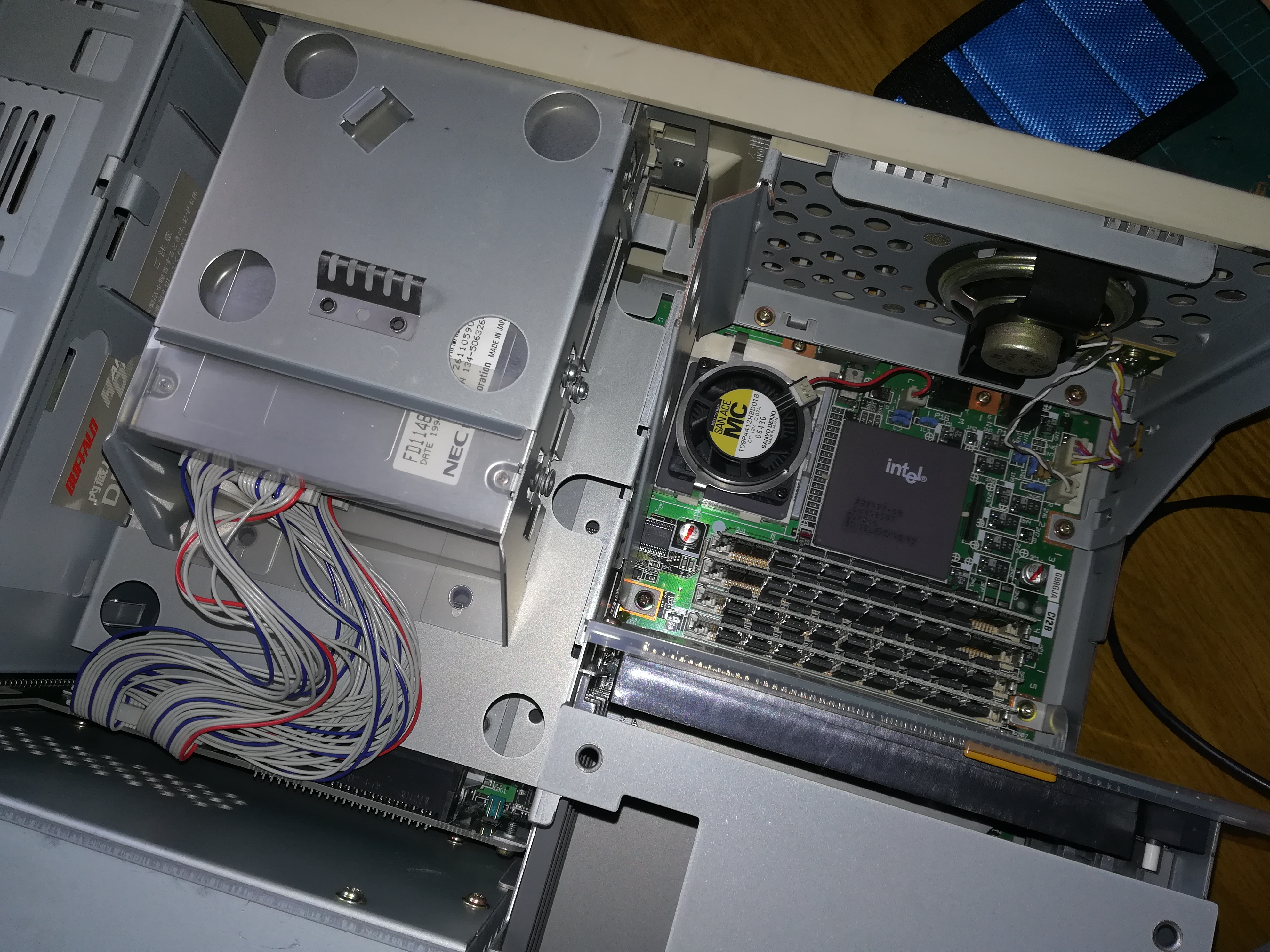

A NEC PC-9821AN computer bought from buyee.jp in spring 2019. Equipped with a Pentium 90 processor, 4x 72pin SIMMs (30MB total RAM), 2x 3.5 FDD and several C-Bus expansion cards. It is very clean inside.

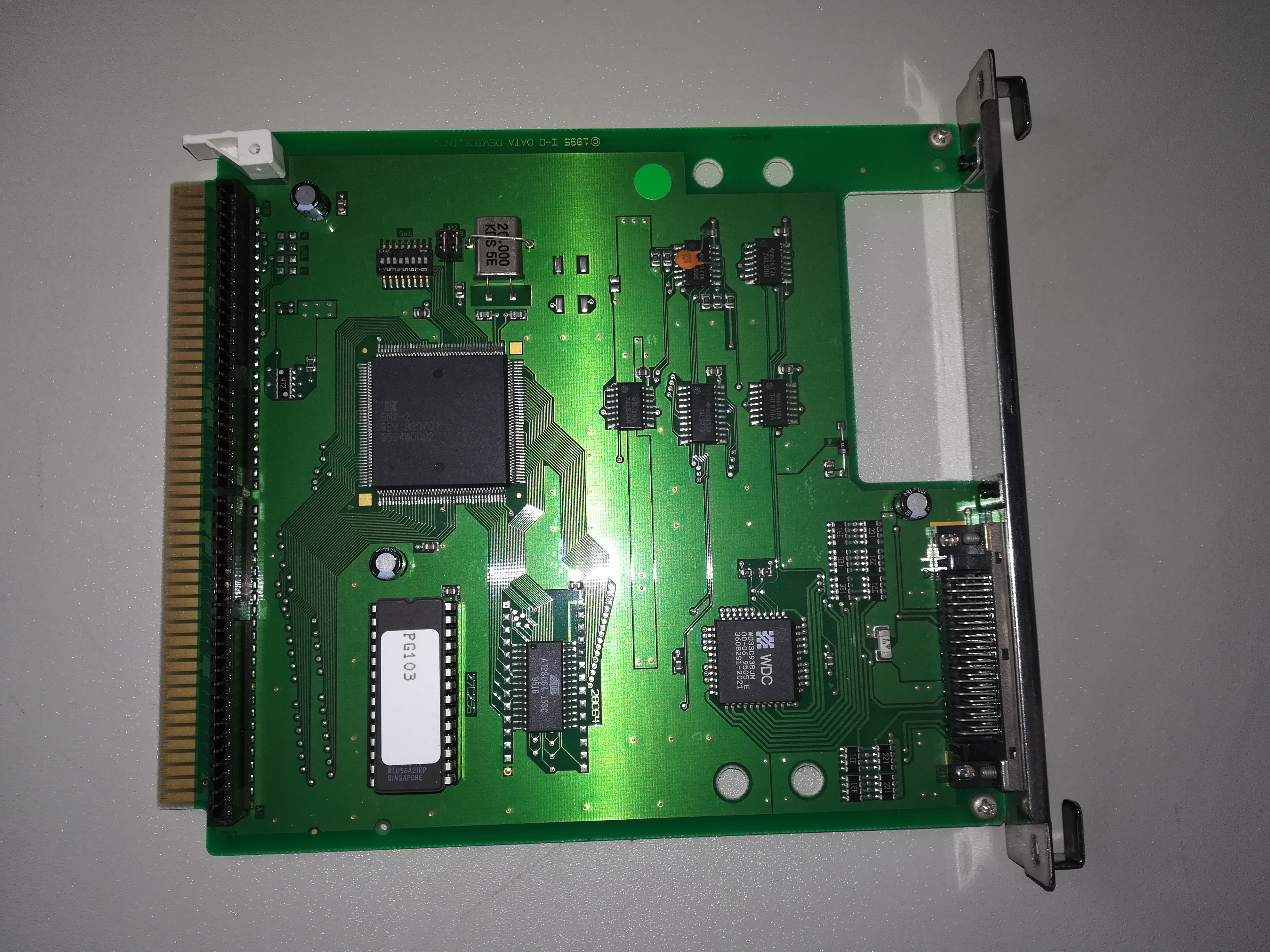

The cards include:

1x Ethernet (Buffalo LGY-98)
1x SCSI II (IO-Data 982A)

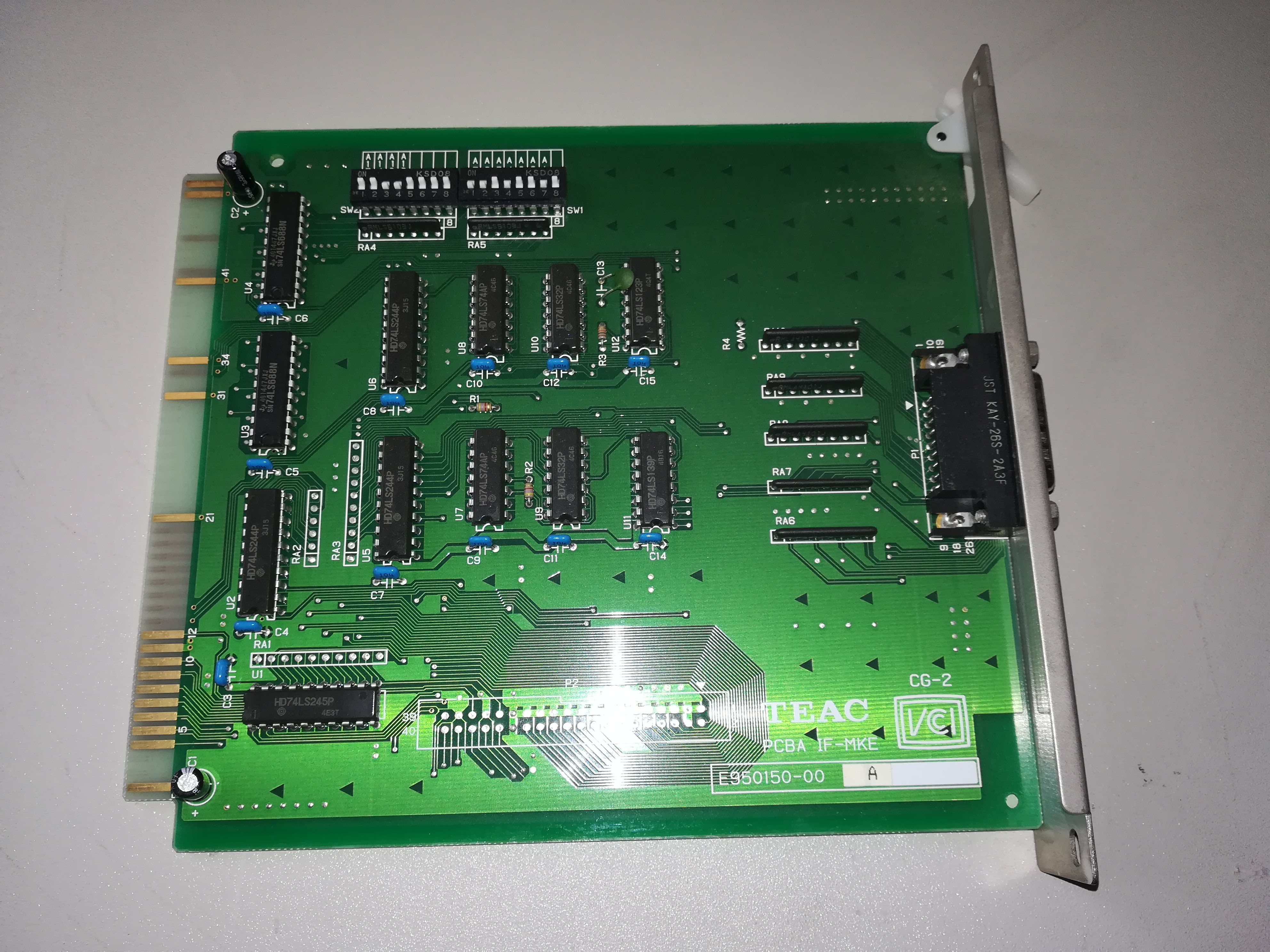

1x ??? (TEAC IFE-MKE)

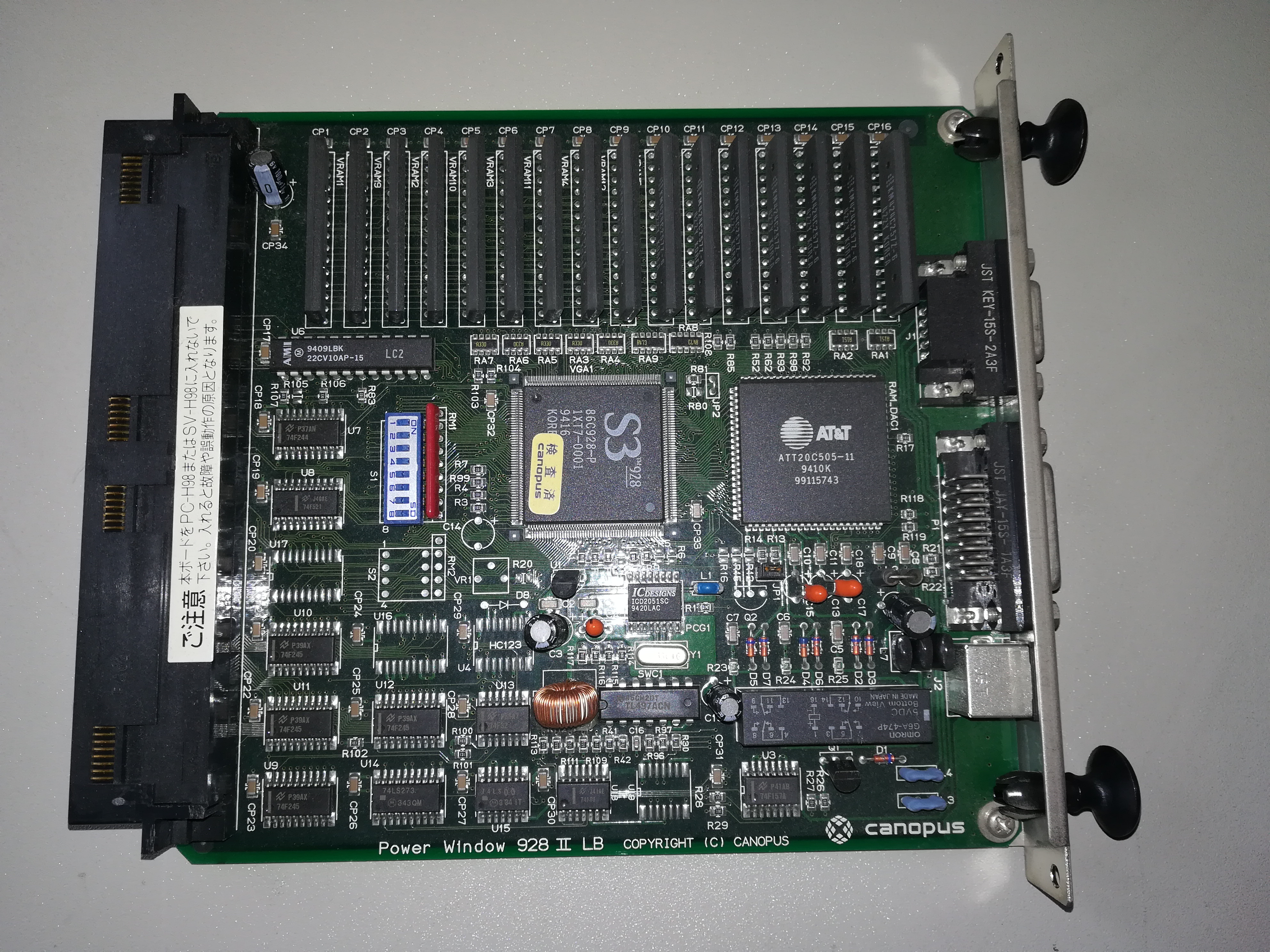

1x SVGA (Canopus Power Window S3 928 with 2MB)

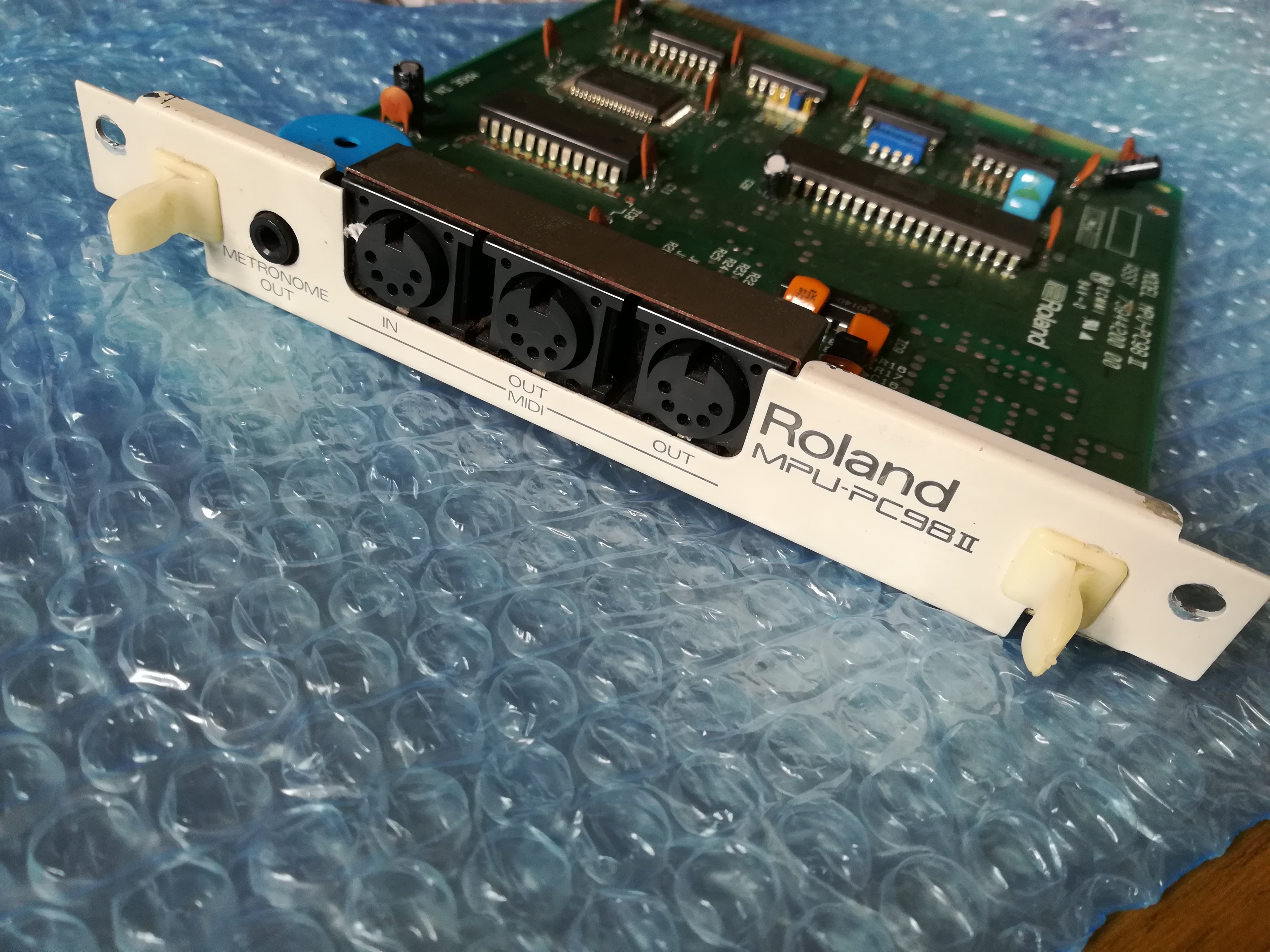

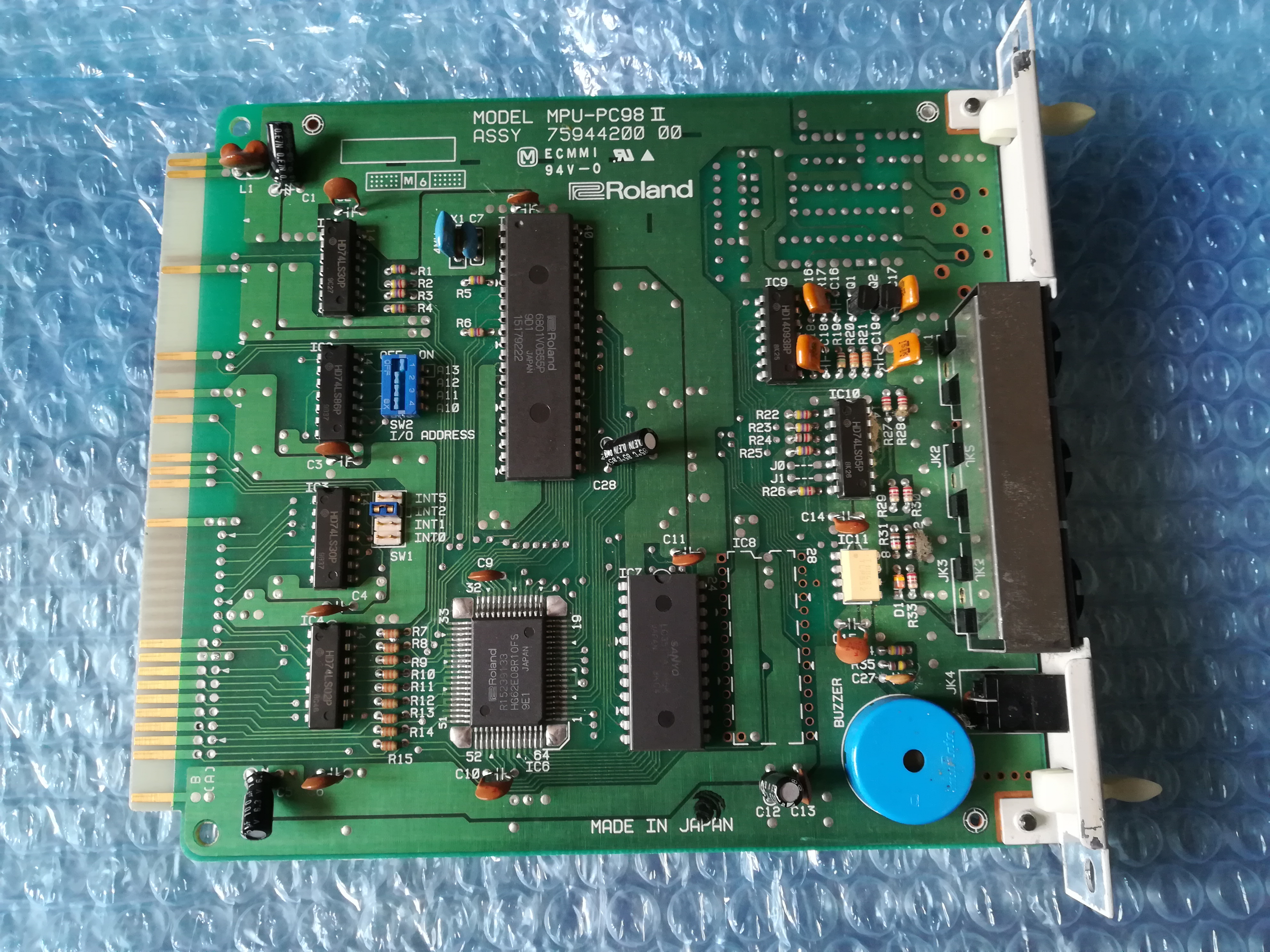

I've also sourced a Roland MPU-PC98 II midi interface card and have removed the unknown TEAC card to install it.

Has now been fitted with exide486 IDE BIOS ROM on a TEAC SCSI carrier card. This upgrades the hard disk capacity from a maximum of 542MB or 4.3GB to 127GB.

Images


Image Original Size (bytes) Image Dimensions (pixels) Description

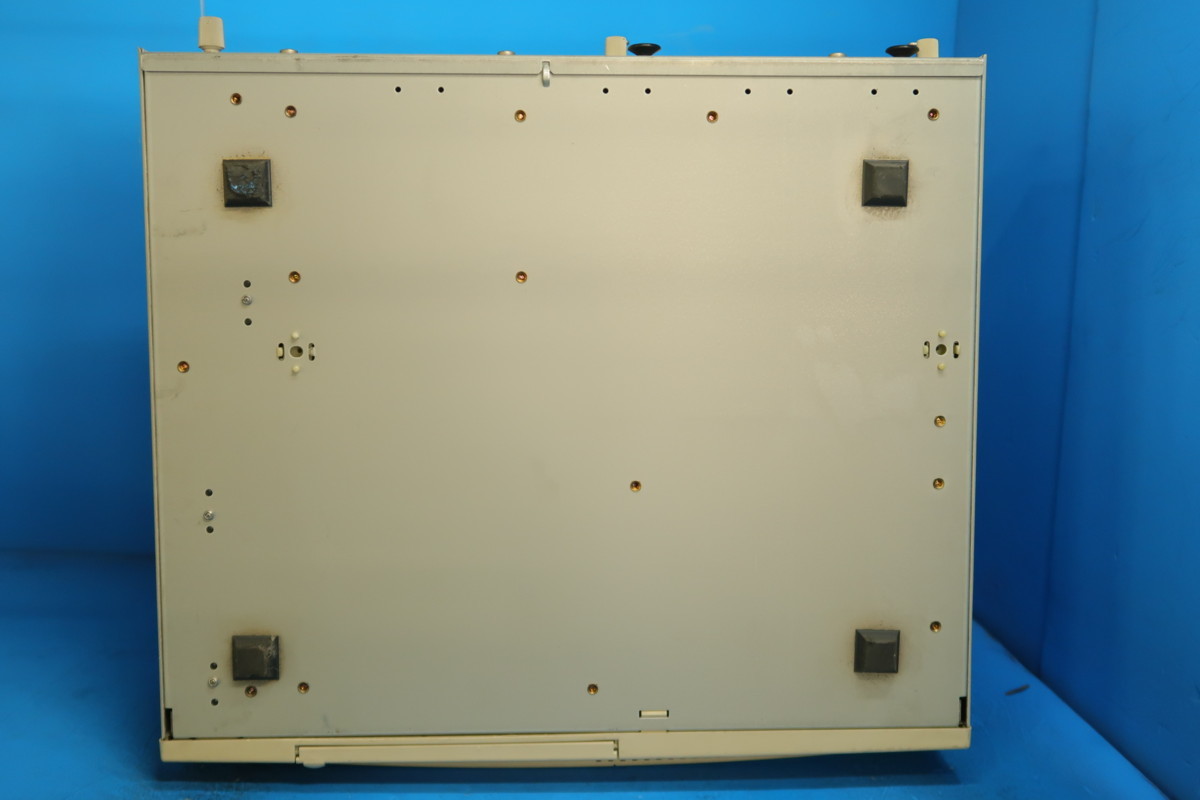

80253 1200 x 800 Original auction picture showing underside of case.
72145 1200 x 800 Original auction picture showing case top.

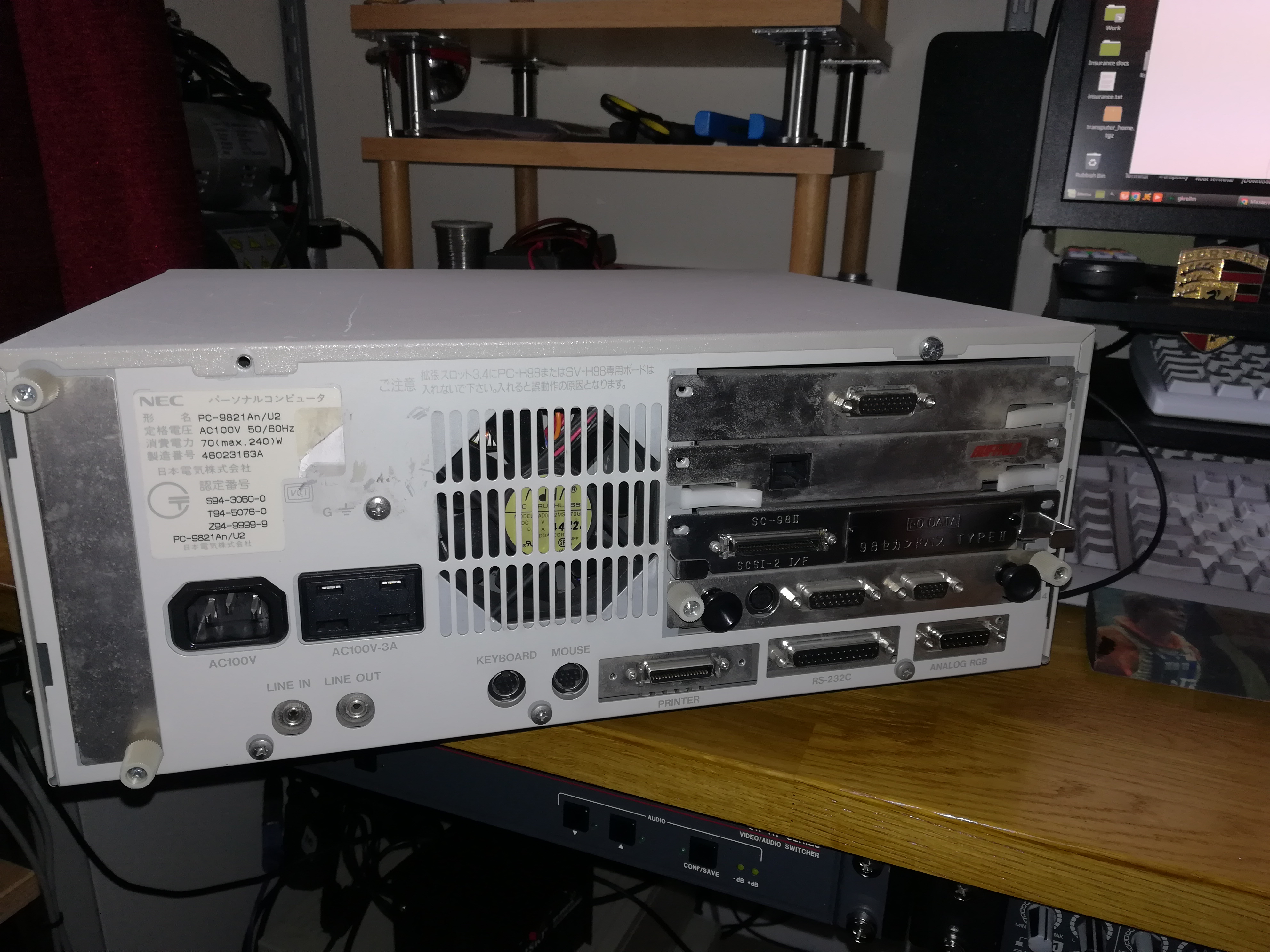

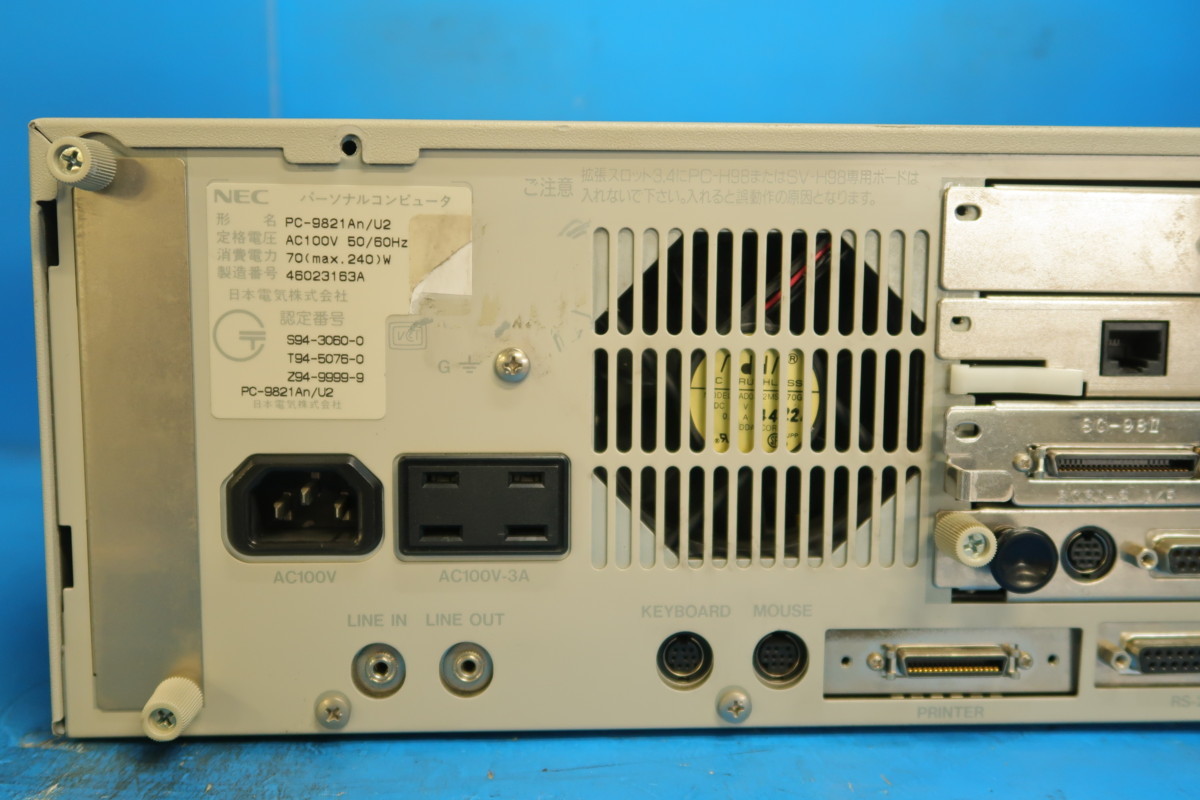

163029 1200 x 800 Original auction picture showing rear of case and the four included add-in cards.

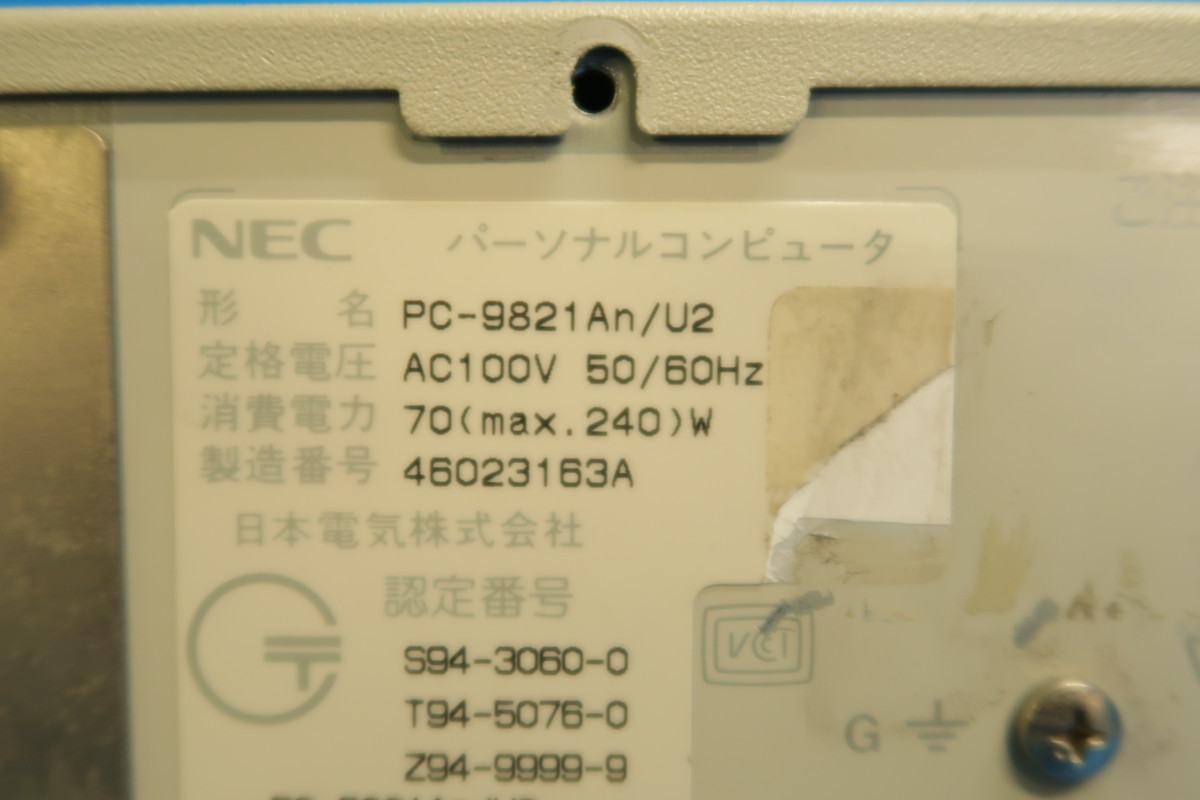

170292 1200 x 800 Original auction picture. The PC98 is 110v AC, so needs a step-down transformer from the UK/EU 220-240v system.
195686 1200 x 800 No Description
106693 1200 x 800 No Description
89025 1200 x 800 No Description
2502808 3968 x 2976 Packaging as received from Buyee - impressive.
1990463 3968 x 2976 No Description
1937020 3968 x 2976 No Description
2557626 3968 x 2976 No Description
3504851 3968 x 2976 No Description
4193788 3968 x 2976 No Description
3873977 3968 x 2976 No Description
3146028 2976 x 3968 No Description
3605439 3968 x 2976 No Description
2472950 3968 x 2976 No Description
3304133 3968 x 2976 No Description
2988890 3968 x 2976 No Description

Scans / Screenshots

  • Edit Details

    Notes

    First power on of the system after it arrived from Japan. The error message says that no OS is installed on the internal drive.

  • Edit Details

    Notes

    Output from the OSSC scan convertor showing the intput frequency of the onboard PC-98 graphics. It does a really good job of scaling it to fit my 1920x1200 screen, including scanlines.

  • Edit Details

    Notes

    Formatting a new-old stock 340MB IDE hard drive to make sure everything works.

  • Edit Details

    Notes

    Booted from a DOS 6.2 floppy and about to start the install to hard drive.
