Target-Earth

X68000 Pro

ManufacturerSharp
RegionJapan
Platform X68000
Original
Boxed
Instructions
Edit System Details

Sharp X68000 Pro (model CZ-652C-GY) bought from Buyee.com (Yahoo Japan Auction proxy) in May 2020.

Standard specifications include:

10MHz Motorola 68000
1MB RAM
2x 1.2MB 5.25" Floppy Drives
External SASI Hard Drive Connector
4x IO slots

Arrived early June with power fault (I think every X68000 in existence now must have had at least one power supply replaced). Intention is to remove the original PSU and replace it with a PicoPSU and adapter board from Aranet (https://www.arananet.net/pedidos/product/atx-adapter-for-x68000/).

Although the work to fit the replacement PSU was straight forward, the machine was damaged after being powered on the first time due to faulty wiring diagram schematics from Gamesx (which have now been amended). This resulted in the machine not accepting any keyboard or joystick input, as well as the second floppy drive not working (may or may not be related). The sound was also really affected until I replaced and socketed the two onboard op-amps and headphone amplifier IC's.

Images


Image Original Size (bytes) Image Dimensions (pixels) Description
68733 777 x 395 Complete system, including rear IO covers, but obviously filthy. From original auction photos.
184304 892 x 671 Looks to be relatively clean inside. From original auction photos.
52306 654 x 398 From original auction photos.

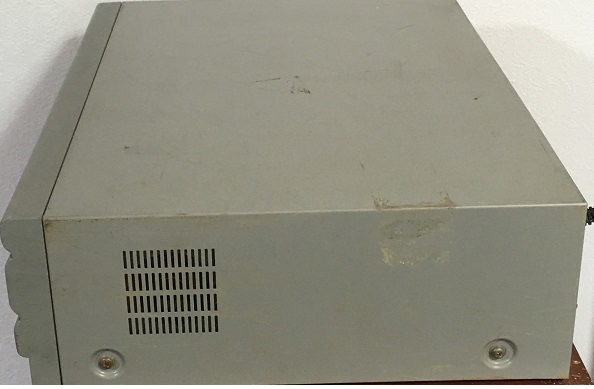

48945 594 x 389 From original auction photos.

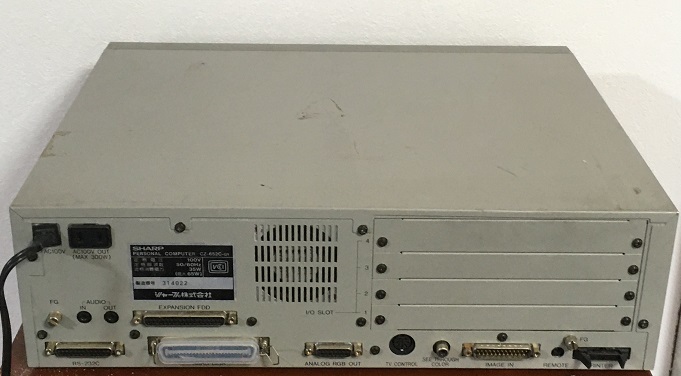

67915 681 x 376 Rear of case showing all four IO blanking plates still fitted. No goodies hidden behind the IO plates, unfortunately! This image from original auction photos.
92512 680 x 476 Underside of chassis; at least it looks to have all four rubber feet LOL! From original auction photos.
68733 777 x 395 Complete, with no broken buttons/switches, but obviously totally filthy. From original auction photos.
8062092 6000 x 4000 Case interior was pretty clean when it arrived.
11597248 6000 x 4000 Case interior was pretty clean when it arrived.
8141261 6000 x 4000 Case interior was pretty clean when it arrived.
7365853 6000 x 4000 Front panel cleaned after arrival.
8630661 6000 x 4000 Front panel cleaned after arrival.
8020089 6000 x 4000 With my 1MB RAM expansion card fitted (2MB total onboard RAM).
6433085 6000 x 4000 Cleaned up nicely apart from the scratches on the case top.
10192081 6000 x 4000 PRO logo...
7863174 6000 x 4000 Case cleaned up - looks pretty good apart from the scratches on the metal top cover.
